U3

Balanced shaft engine

The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.

Parameter data

12kw

8000r/min

kM/H

Max Speed

< M(30Km/h)

Braking distance

17N·M

6500r/min

BACK

Color switching:

FULL SPEED

Good shock absorption

High precision parts

ABS brake

U3

ANDES MOTOS

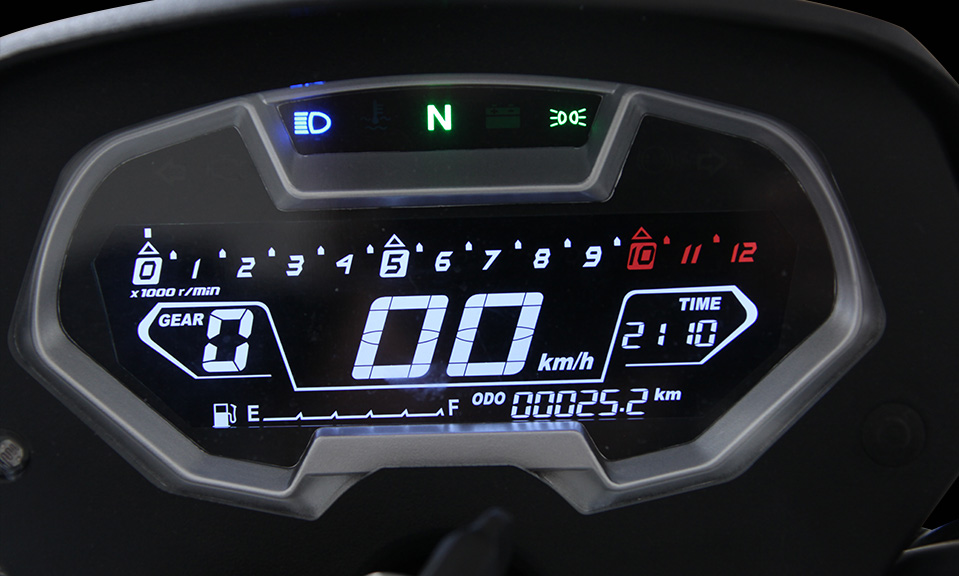

Multi-function instrument

Use for reference the upgrade design of large displacement motorcycle instrument, color adjustable multi-function instrument.

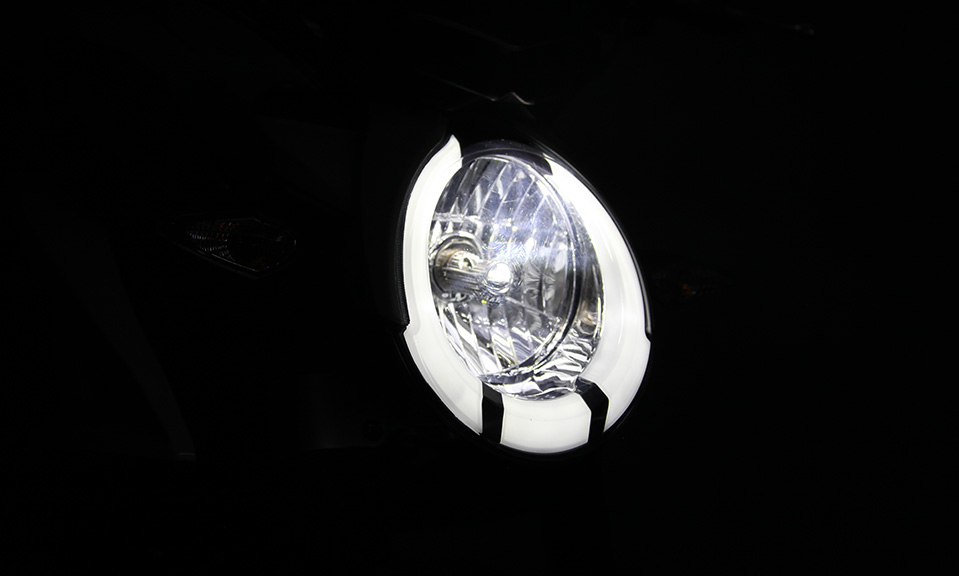

LED circular headlights

The headlights adopt the current LED light source design used in mid to high-endcars, and the white light scattered by the ED not only has a visual effect, butalso brings good safety protection.

Balanced shaft engine

The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.

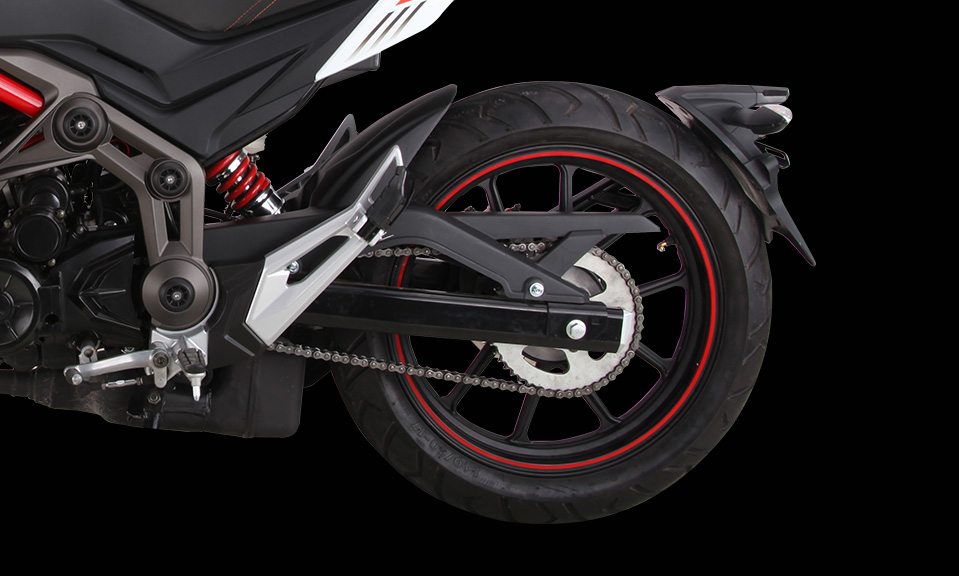

Original shock absorbers

Let the knight experience the feeling of flowing clouds and water while riding.

The front shock absorption adopts hydraulic damping type shock absorption, with moderate rebound damping, while the rear shock absorption adopts central shock absorption, which is more balanced and accurate when turning and bending. Stablecurve performance gives excellent playability.

Extra-long road test

Road test conditions include terrain (mountain, road, gravel, snow, mud, plateau) and climate (-20c to 50C) to ensure vehicle safety and stability.

All models in the Andes have completed 30,000 kilometres of road testing

30,000

km

Ordinary Assembly cars do not do road tests

0

km

0

km

5,000

km

15,000

km

20,000

km

30,000

km

Multi-angle display

Basic parameters

Model
AD250-3A
EngineLONCIN RE250
Engine Type1-Cylinder, 4-Stroke, air-cooling
Bore X Stroke65.5x66.2mm
Cylinder Volume223ml
Compression Ratio9.2:1
Max. Torque17N.m/6500500r/min
Max.Power12Kw/8000r/min:500r/min
Transmission6 Gears
Climbing21°
Max Speed110km/h
Seat HeightFr 810/Rr930 mm
Handle Bar745mm
Min.steering φ4450mm
Min.ground clearance185mm
Wheelbase1365mm
Size(LxWxH)2080x830x1095mm
